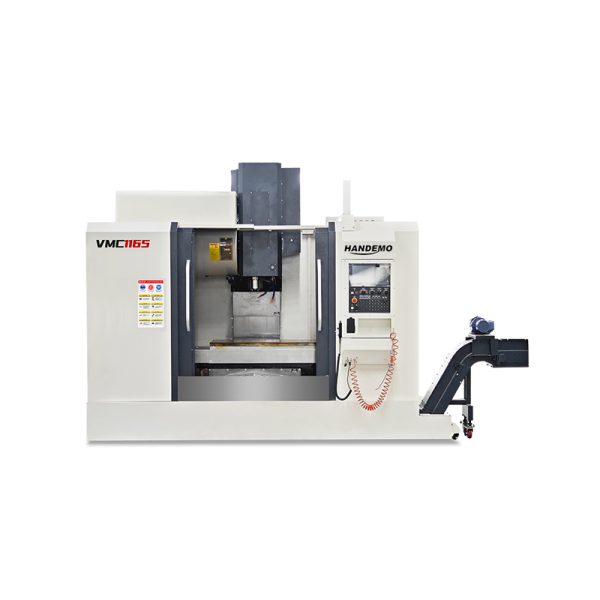

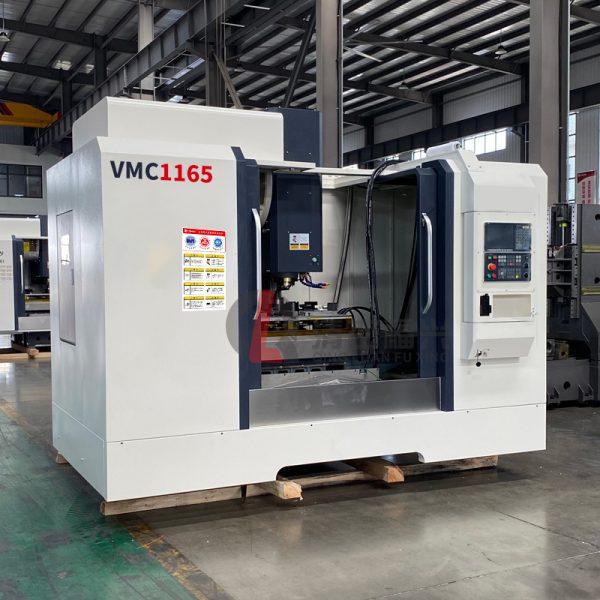

VMC1165
This high-precision vertical machining center features a rigid fixed-column design with 650mm Y-axis travel. The heavy-duty cast iron construction ensures stability, while the 8,000 RPM spindle delivers efficient cutting. With ±0.008mm positioning accuracy, it’s ideal for precision mold and aerospace component machining.
WhatsApp: +86 15163265202
E-mail: sales@cnchandemo.com
Product Parameters
| Name | Specification | |
|---|---|---|
| Workbench | Workbench size | 1200*600mm |
| Maximum allowable load | 800kg | |
| T-slot dimensions | 5-18-100mm | |
| Processing range | X-axis travel | 1100mm |
| Y-axis travel | 650mm | |
| Z-axis travel | 600mm | |
| Spindle | Spindle taper hole | BT 40 φ150 |
| Spindle speed | 8000 r/min | |
| Spindle motor power | 15kw | |
| Rapid shift speed | X-axis | 36 m/min |
| Y-axis | 36 m/min | |
| Z-axis | 18 m/min | |
| Tool Magazine | Tool magazine form | Rotary Disc-type |
| Tool magazine capacity | 24 | |
| Tool changing speed | 2.5s | |
| Positioning accuracy | X/Y/Z axis | 0.008mm |
| Repeat positioning accuracy | X/Y/Z axis | 0.005mm |
| Machine size (length x width x height) | 3100*2500*2800mm | |
| Machine weight | 7500kg | |
Standard Configuration
- CNC system: KND2000MF3i/HNC808DM
- Servo drive, motor
- Three-axis bearing
- Three-axis roller screw
- Three-axis guide rail
- 24-tool Disc-type Tool Magazine
- Belt-driven spindle
- Tool clamping cylinder
- Indicator Lights
- External protective cover
- 3-axis telescopic cover
- Pneumatic device
- Pressure switch
- Lubricating oil pump
- Cooling pump
- Machine tool heat exchanger
- Main electrical components
- Terminal Blocks
