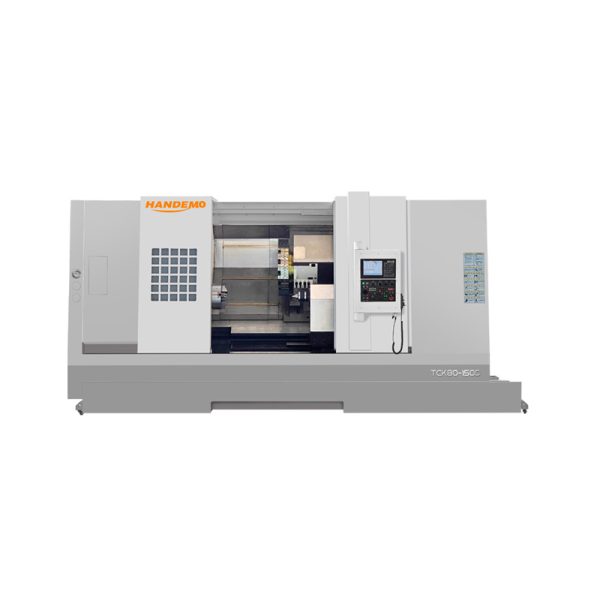

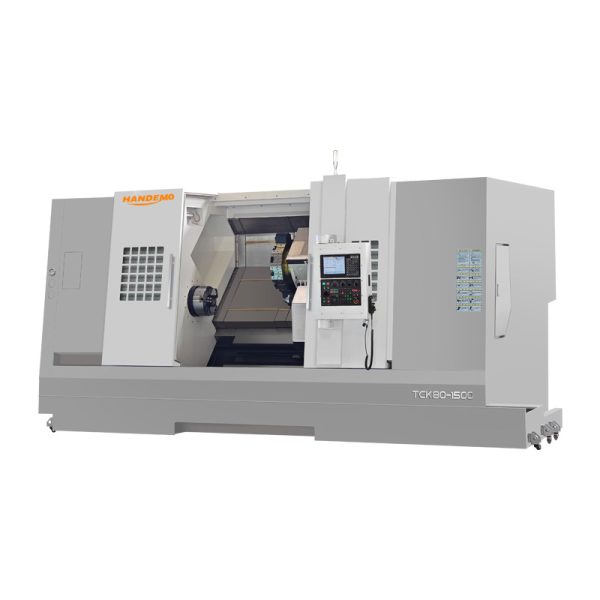

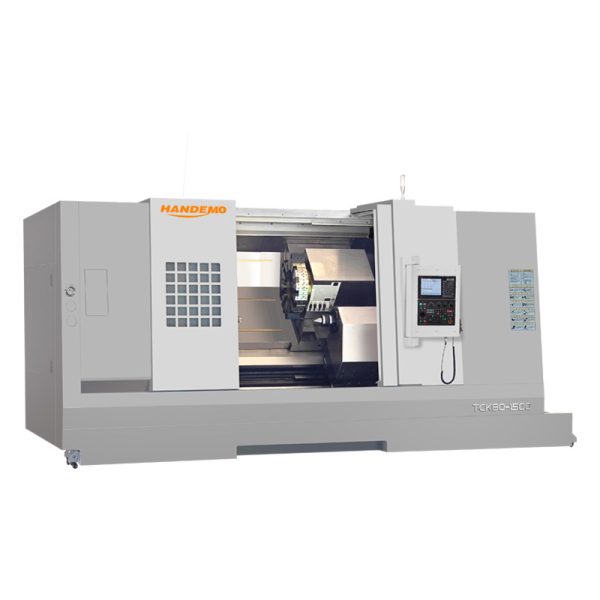

TCK80-1500
The TCK80 – 1500 is a cutting – edge CNC slant lathe, meticulously designed to meet the evolving needs of modern manufacturing. Its slant – bed configuration offers enhanced stability during high – speed operations and seamless chip removal.
- Hyper – Dynamic Spindle for Agile Machining
- Adaptive Precision System for Flawless Results
- 1500mm Extended Rigid Bed for Large – Scale Workpieces
HANDEMO
Parameters
| Product model | TCK80-1500 | Control system | KND |
|---|---|---|---|
| Maximum rotation diameter on the bed | 1000mm | Tailstock sleeve diameter | 110mm |
| Maximum cutting length | 1500mm | Tailstock sleeve taper | Mohs 6# |
| Maximum cutting diameter | 800mm | Standard tool holder type | horizontal 12-station servo |
| Maximum saddle rotation diameter | 550mm | External circular tool size | 32×32mm |
| Spindle end face type and code | A2-11 | Boring bar diameter | φ50/φ40/φ32/φ25/φ20mm |
| Spindle aperture | 120mm | Can I choose a tool nearby | Yes |
| Maximum bar diameter | 105mm | Maximum load-bearing capacity of disc parts | 500 (including accessories such as chucks) |
| Spindle speed range | 30~750 r/min | Maximum load-bearing capacity of shaft parts | 1000 (including accessories such as chucks) |
| Spindle maximum output torque | 1120Nm | Processing accuracy | IT6 |
| Main motor output power (30 minutes/continuous) |
22 KW | Workpiece roundness | 0.0025mm/Ф75 |
| Chuck diameter | 12 inches | Workpiece cylindricity | 0.010mm / 150mm |
| Chuck type | hollow chuck | Workpiece flatness | 0.010mm/Ф200mm |
| X-axis fast moving speed | 8 m/min | Workpiece surface roughness | Ra1.25μm |
| Z-axis fast moving speed | 8 m/min | X-axis positioning accuracy | 0.01mm |
| X-axis travel | 450 mm | Z-axis positioning accuracy | 0.01mm |
| Z-axis travel | 1600 mm | X-axis repeat positioning accuracy | 0.008mm |
| Tailstock stroke | 1500mm | Z-axis repeat positioning accuracy | 0.008mm |
| Tailstock sleeve stroke | 100mm |
HANDEMO
Features
Hyper - Dynamic Spindle
Our exclusive hyper – dynamic spindle technology allows for rapid acceleration and deceleration, reaching speeds of up to 750 RPM in seconds. This not only boosts machining efficiency but also enables precise contouring and high – speed threading.
Adaptive Precision System
Equipped with an array of high – sensitivity sensors, the TCK80 – 1500’s adaptive precision system continuously monitors the machining process. It automatically adjusts cutting parameters in real – time, compensating for tool wear, material variations, and thermal expansion.
1500mm Extended Rigid Bed
The 1500mm extended bed, constructed from high – grade alloy steel, offers exceptional rigidity and stability. It can securely support large – scale workpieces, such as those found in the energy and marine industries.
Intuitive Smart Control Interface
The user – friendly control panel features a large – screen touch display with intuitive graphical controls. Operators can easily program complex machining operations, access real – time machine status data, and monitor the machining process through live video feeds.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
- 24/7 online reception service
- On-site installation
- 5-year warranty
