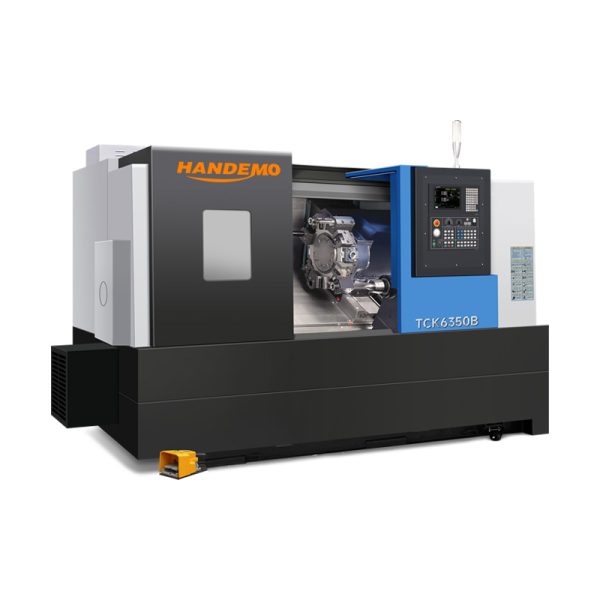

TCK6350B
The TCK6350B is an advanced CNC slant lathe meticulously engineered to meet the diverse and exacting demands of modern manufacturing. Its slant – bed design not only offers enhanced stability during high – speed operations but also enables efficient chip evacuation.
- High – Torque Spindle for Heavy – Duty Machining
- Ultra – Precise Control System for Micron – Level Accuracy
- Versatile Work Envelope for Diverse Machining Needs
HANDEMO
Parameters
| Product model | TCK6350B | Control system | KND |
|---|---|---|---|
| Maximum rotation diameter on the bed | 630mm | Standard tool holder type | horizontal 12-station servo |
| Maximum cutting length | 500mm | External circular tool size | 32×32mm |
| Maximum cutting diameter | 480mm | Boring bar diameter | φ50/φ40/φ32/φ25/φ20mm |
| Maximum rotation diameter on the slide | 370mm | End tool holder | 32×32mm |
| Spindle end face type and code | A2-8 | Can I choose a tool nearby | Yes |
| Spindle aperture | 96mm | Maximum load-bearing capacity of disc parts | 350 (including accessories such as chucks) |
| Maximum bar diameter | 85mm | Maximum load-bearing capacity of shaft parts | 820 (including accessories such as chucks) |
| Spindle speed range | 50~3000 r/min | Machine dimensions (length * width * height) | 3300×1750×1890mm |
| Spindle maximum output torque | 306Nm | Machine weight | 4300 kg |
| Main motor output power (30 minutes/continuous) |
15/18.5 KW | Processing accuracy | IT6 |
| Chuck diameter | 10 inches (optional 12) | Workpiece roundness | 0.0025mm/Ф75 |
| Chuck type | hollow chuck | Workpiece cylindricity | 0.010mm / 150mm |
| X-axis fast moving speed | 12 m/min | Workpiece flatness | 0.010mm/Ф200mm |
| Z-axis fast moving speed | 12 m/min | Workpiece surface roughness | Ra1.25μm |
| X-axis travel | 270 mm | X-axis positioning accuracy | 0.008mm |
| Z-axis travel | 690 mm | Z-axis positioning accuracy | 0.008mm |
| Tailstock stroke | 500mm | X-axis repeat positioning accuracy | 0.004mm |
| Tailstock sleeve stroke | 100mm | Z-axis repeat positioning accuracy | 0.004mm |
| Tailstock sleeve taper | Mohs 5# |
HANDEMO
Features
Excellent processing size specifications

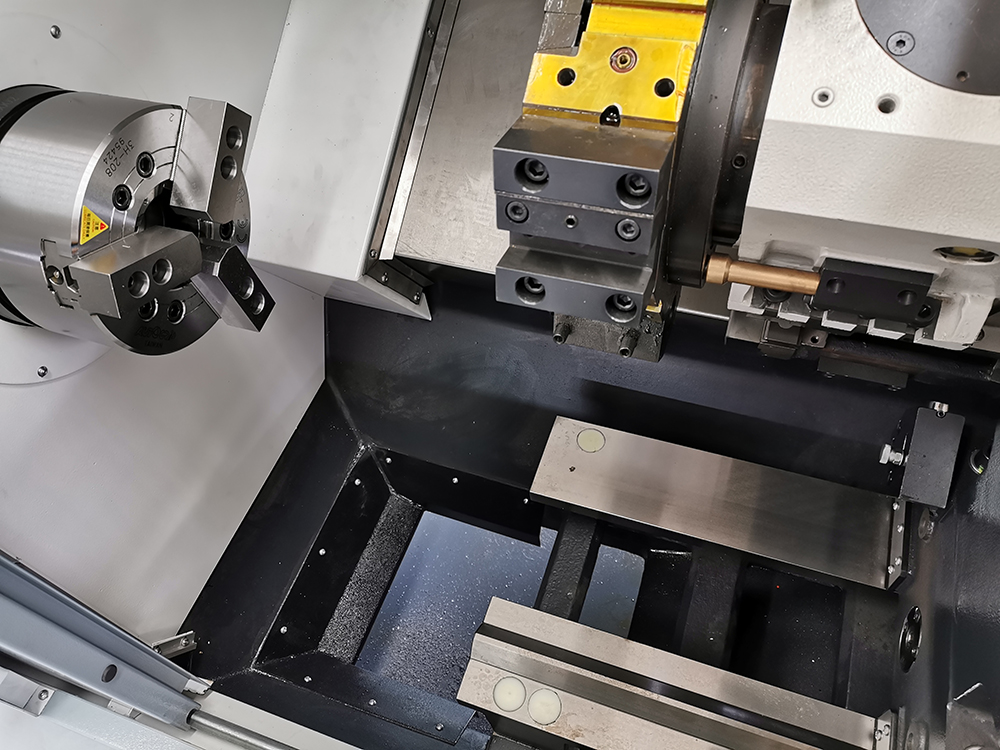

TCK6350B has excellent large-size workpiece processing capabilities, with a maximum cutting diameter of 480 mm and a maximum cutting length of 500 mm. Equipped with a 10-inch/12-inch diameter chuck, it can provide strong and stable clamping force.
Versatile Work Envelope
The TCK6350B offers a versatile work envelope, with a maximum cutting diameter of 480 mm and a length of 500 mm. This allows for the machining of a wide variety of workpieces, from small, intricate components to large – scale parts.

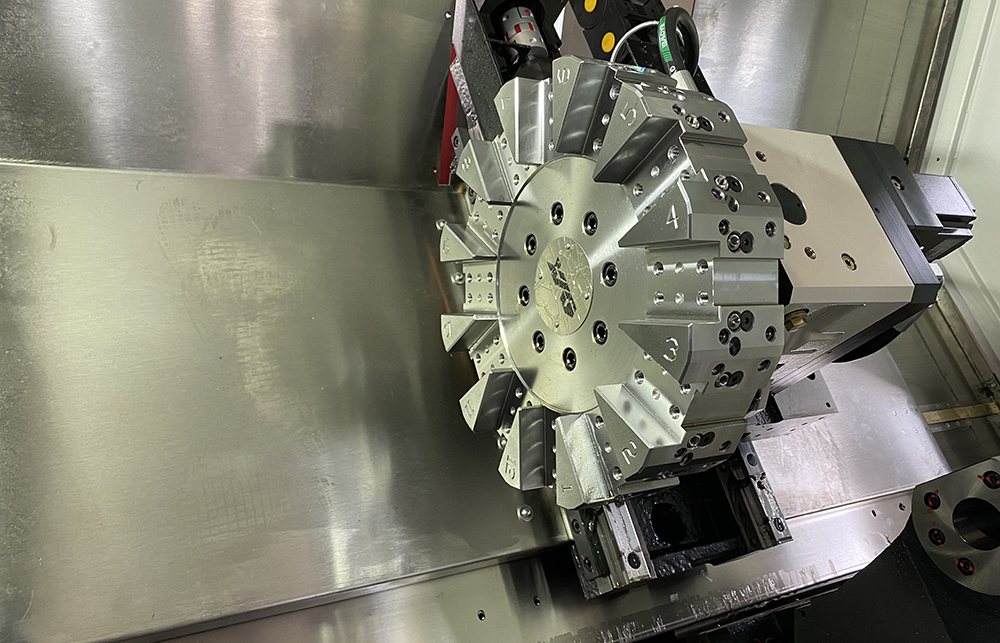

12 - Station Servo Turret
The TCK6350B is equipped with a 12 – station servo turret, which significantly enhances its machining versatility. Each station can be quickly and precisely indexed, reducing tool change times to a minimum.

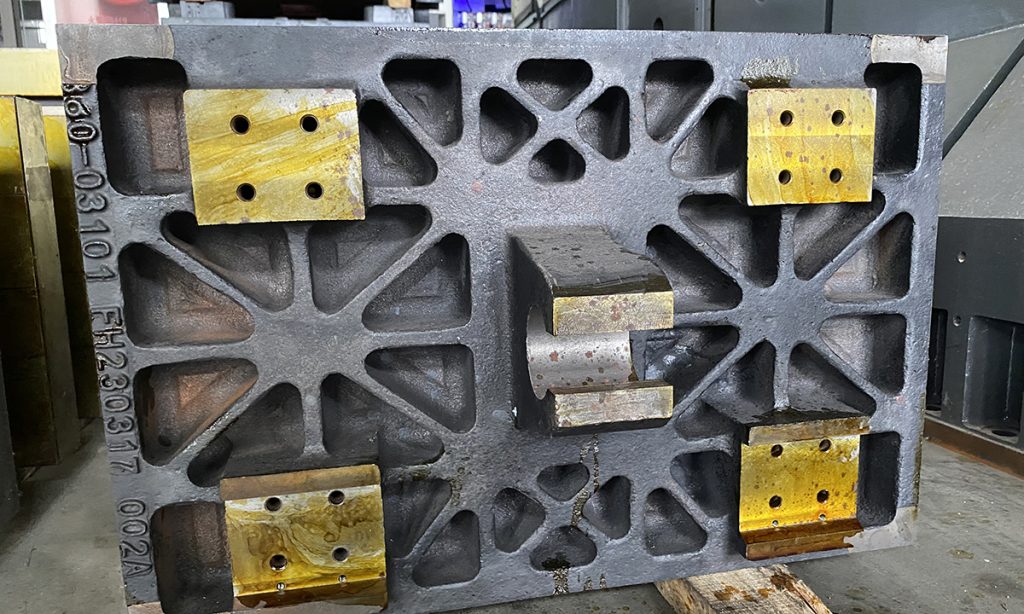

High - Rigidity Hard Rail
Featuring high – rigidity hard rails, the TCK6350B provides exceptional stability during machining. The hard rails, made from high – quality alloy steel and precision – ground, can withstand heavy cutting forces without deformation.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
- 24/7 online reception service
- On-site installation
- 5-year warranty
