TCK600D

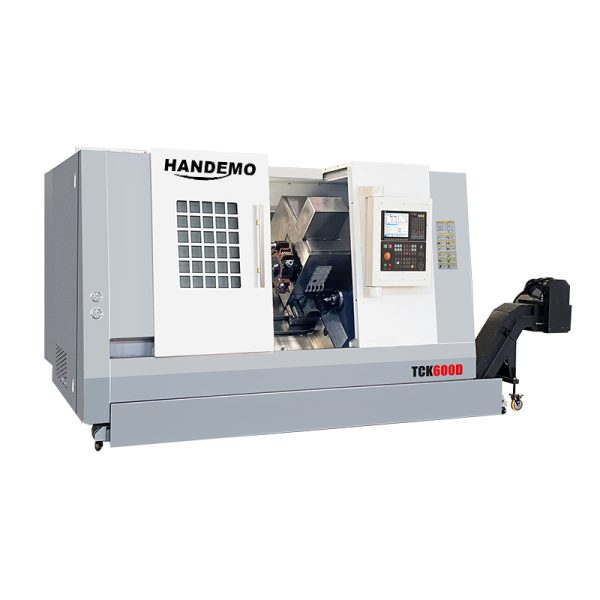

The TCK600D is a cutting – edge CNC slant lathe, meticulously engineered to meet the diverse and demanding needs of modern manufacturing. Its slant – bed design not only offers enhanced stability during high – speed operations but also enables efficient chip evacuation.
- Generous Work Envelope with Impressive Cutting Dimensions
- Multi – Station Turret for Enhanced Machining Versatility
- Advanced CNC System for Superior Control
HANDEMO
Parameters
| Product model | TCK600D | Control system | Siemens828D |
|---|---|---|---|
| Maximum rotation diameter on the bed | 600mm | End tool holder | 32×32mm |
| Maximum cutting length | 430mm | Can I choose a tool nearby | Yes |
| Maximum cutting diameter | 310mm | Tool size | BMT65 |
| Maximum rotation diameter on the slide | 370mm | Maximum load-bearing capacity of disc parts | 350 (including accessories such as chucks) |
| Spindle end face type and code | A2-8 | Maximum load-bearing capacity of shaft parts | 820 (including accessories such as chucks) |
| Spindle aperture | 80mm | Machine dimensions (length * width * height) | 2790×1900×1850 mm |
| Maximum bar diameter | 70mm | Machine weight | 4300 kg |
| Spindle speed range | 50~3500 r/min | Processing accuracy | IT6 |
| Spindle maximum output torque | 215Nm | Workpiece roundness | 0.0025mm/Ф75 |
| Main motor output power (30 minutes/continuous) | 18.5/15 KW | Workpiece cylindricity | 0.010mm / 150mm |
| Chuck diameter | 10 inches | Workpiece flatness | 0.010mm/Ф200mm |
| Chuck type | hollow chuck | Workpiece surface roughness | Ra1.25μm |
| X-axis travel | 300 mm | X-axis positioning accuracy | 0.008mm |
| Z-axis travel | 500mm | Z-axis positioning accuracy | 0.008mm |
| Standard tool holder type | horizontal 12-station servo | X-axis repeat positioning accuracy | 0.004mm |
| External circular tool size | 32×32mm | Z-axis repeat positioning accuracy | 0.004mm |
| Boring bar diameter | φ50/φ40/φ32/φ25/φ20mm |
HANDEMO
Features
Generous Work Envelope
The TCK600D offers an expansive work envelope, with a maximum cutting diameter of 310 mm and a length of 430 mm. Coupled with a 10 inches diameter chuck, it provides a firm and stable grip on workpieces, ensuring precision machining even for the most challenging materials and shapes.
Multi - Station Turret
Equipped with an 12 – station turret, the TCK600D brings unrivaled versatility to machining operations. Each station can hold a different type of tool, enabling a seamless transition between various machining tasks such as turning, threading, drilling, and milling.
High - Precision Lead Screw and Linear Guide
Equipped with Hiwin/PMI lead screw and linear guide rail, the transmission is smooth, the precision is well maintained, and the service life of the machine tool is extended.
Advanced CNC System
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
