TCK56-1000
The TCK56 – 1000 is a paragon of modern machining technology. Engineered with a slant – bed structure, it offers enhanced stability during high – speed operations and efficient chip evacuation. This lathe combines a super – high – torque spindle, capable of handling the most rugged materials, with an ultra – precision control system that ensures every cut is executed with micron – level accuracy. Its extra – long bed design is tailored for machining extended workpieces, making it a versatile solution for a wide range of industries.
- Super – High – Torque Spindle for Extreme Machining
- Ultra – Precision Control for Micron – Level Accuracy
- Extra – Long Bed for Extended Workpiece Machining
HANDEMO
Parameters
| Product model | TCK56-1000 | Control system | KND |
|---|---|---|---|
| Max rotation diameter on the bed | 560mm | X-axis travel | 200 mm |
| Max cutting length | 1000mm | Z-axis travel | 1050 mm |
| Maximum rotation diameter on the slide | 350mm | Tailstock stroke | 950mm |
| Center height (from the ground) | 1050mm | Tailstock sleeve taper | Morse 5#/4# |
| Spindle end type and code | A2-6 | Standard tool holder form | horizontal 8-station |
| Spindle hole diameter | 65mm | External circular tool size | 25×25mm |
| Maximum bar diameter | 50mm | Boring tool bar diameter | Ф40/Ф32/Ф25/Ф20 |
| Spindle speed range | 50～4500r/min | Can the tool be selected nearby | Yes |
| Spindle maximum output torque | 177Nm | Maximum load-bearing capacity of disc parts | 200 (including accessories such as chucks) |
| Spindle speed level | stepless speed change | Maximum load-bearing capacity of shaft parts | 500 (including accessories such as chucks) |
| Main motor output power | 15/11KW | Machine dimensions (length * width * height) | 3570 × 1900 × 1850 mm |
| Chuck diameter | 8 inch | Machine weight | 4500 kg |
| X-axis fast moving speed | 30 m/min | Z-axis fast moving speed | 30 m/min |
HANDEMO
Features
Super - High - Torque Spindle
Our TCK56 – 1000 is equipped with a state – of – the – art high – torque spindle. Engineered with precision – ground gears and a powerful motor, it can effortlessly handle the most demanding machining tasks. Whether it’s roughing out large – scale components from hardened steel or performing intricate finishing operations, the spindle’s high torque output ensures smooth, efficient cutting.
Ultra - Precision Control
At the heart of the TCK56 – 1000’s precision capabilities lies its advanced control system. Incorporating the latest in motion control technology and high – resolution encoders, this system can precisely position the cutting tool with micron – level accuracy. The intuitive user interface allows operators to easily input and adjust machining parameters, while real – time monitoring ensures that every cut is executed with utmost precision.

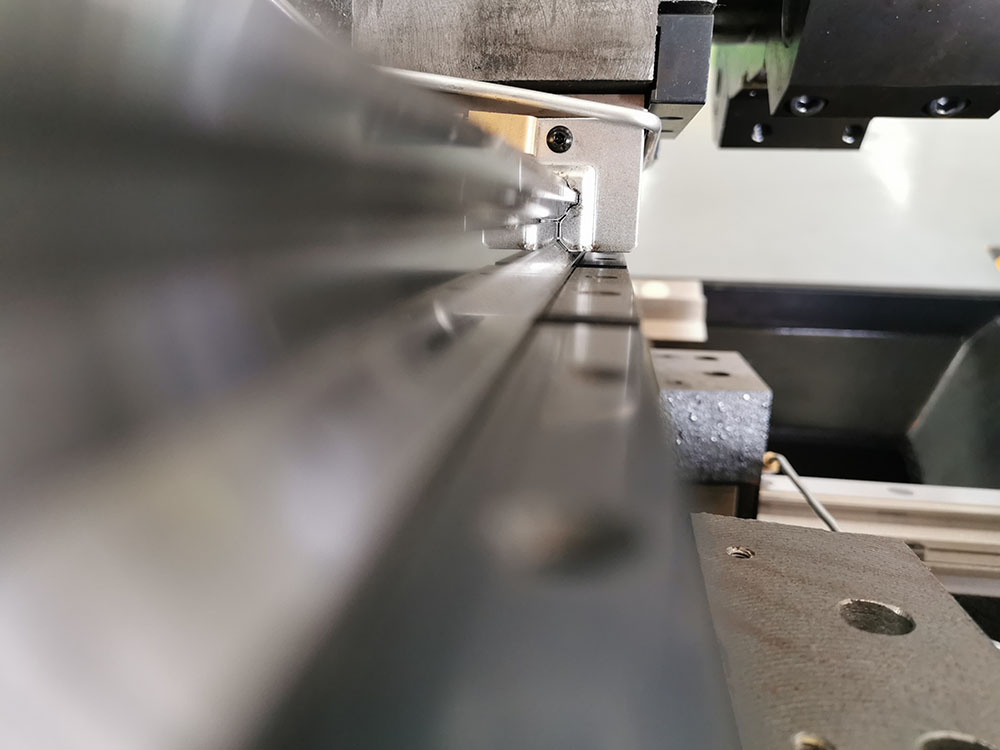

Extra - Long Bed
The TCK56 – 1000 features an extra – long bed, specifically designed to accommodate workpieces of extended lengths. Measuring 3570 mm in length, the bed provides stable support for long – shaft machining operations.
HANDEMO
Application Areas
Aerospace
Automotive
Energy
- 24/7 online reception service
- On-site installation
- 5-year warranty
