TCK3100SY

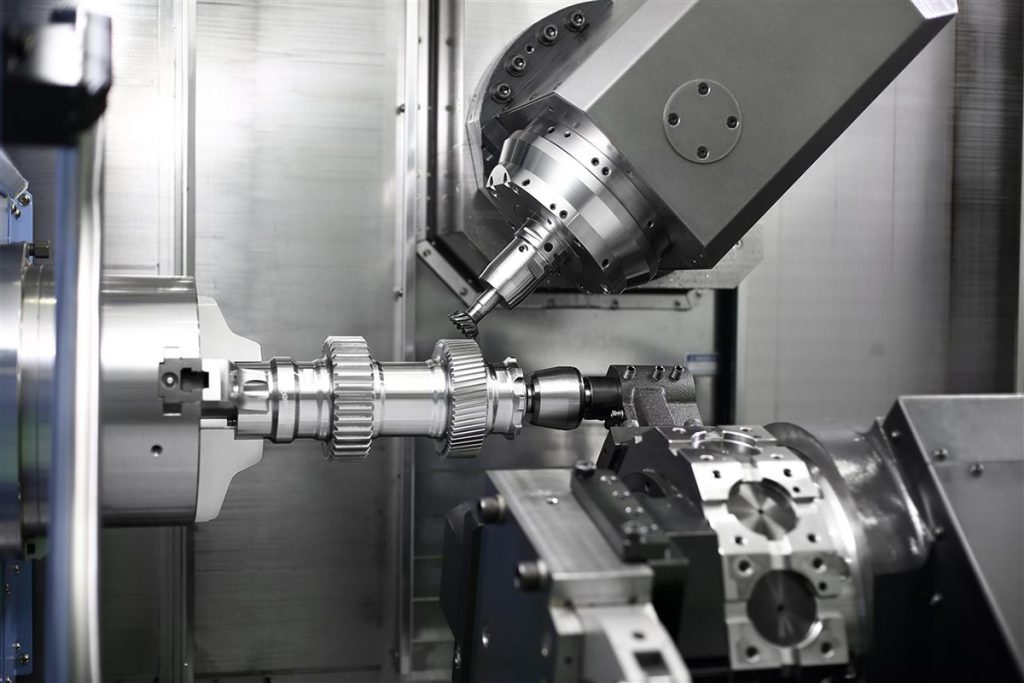

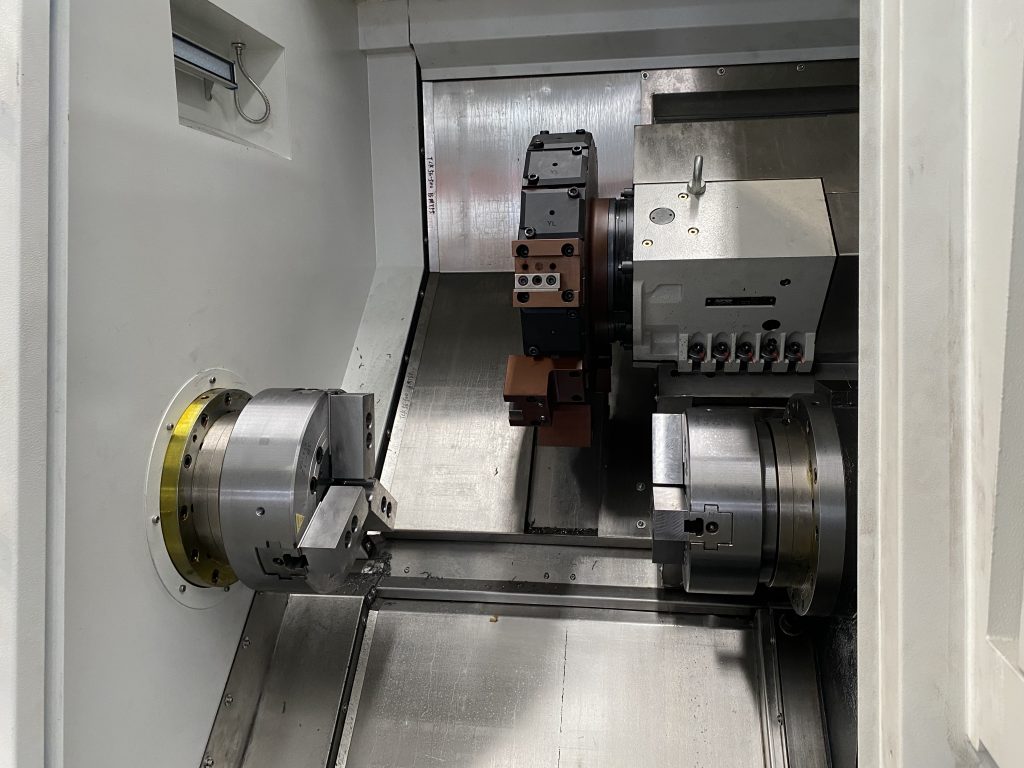

CNC Mill-Turn Machines-TCK3100SY is a powerful CNC turning and milling machine. The horizontal layout and dual-spindle structure make it fully advantageous in processing. With one clamping, a series of complex processes such as turning, milling, drilling, and boring can be completed in one go, greatly improving processing efficiency and accurately avoiding errors caused by multiple clamping.
- Features the same interpolation structure as Doosan.
- Dynamic docking accuracy within 5 μm.
- Customized large turret BMT65 powered turret with a 7.5 kW motor for enhanced cutting performance.
HANDEMO
Parameters
| Product model | TCK3100SY | Control system | KND、fanuc、siemen、 or others |
|---|---|---|---|
| Maximum rotation diameter of lathe | 750mm | X-axis travel | 400mm |
| Maximum cutting length | 1000mm | Y-axis travel | ±100mm |
| Maximum cutting diameter | 500mm | Z-axis travel | 1350mm |
| Spindleendform | A2-8 | Spindlemotor power | 37(30)kw |
| Spindle hole diameter | 85 | X/Y/Z rapid shift speed | 12/12/16m/min |
| Spindle speed | 3000 r/min | Tool holder form | 12-station |
HANDEMO
Features
Large-Scale Precision Machining
Designed for medium to large complex parts with Ø500mm max turning diameter and 1000mm max machining length, delivering ±0.01mm accuracy for heavy-duty applications.
Intuitive CNC Control Interface
Optional CNC system: Fanuc/Siemens/Syntec/GSK, the operation interface is simple and intuitive, the operation is simple and easy to use, even novice operators can quickly get started.

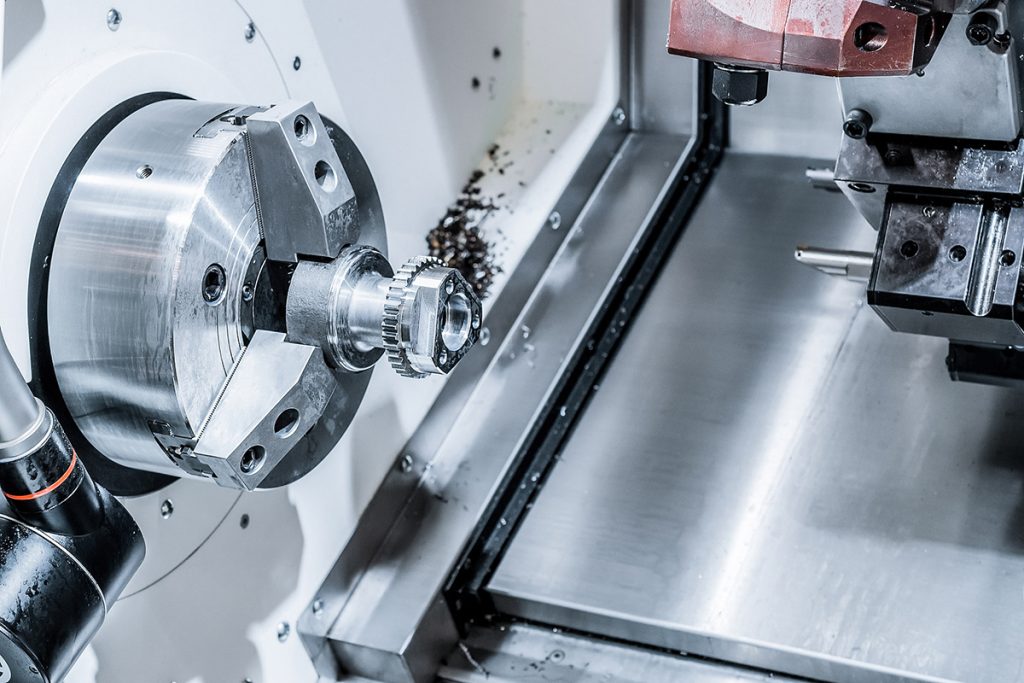

12-Station BMT Live Tooling
Radial & axial power tools (3,000 RPM) enable complex contouring, deep-hole drilling & thread milling without repositioning.
True Multi-Tasking Performance
Simultaneousturning, drilling & threading in one setup, reducing production time by 50% compared to traditional methods.
HANDEMO

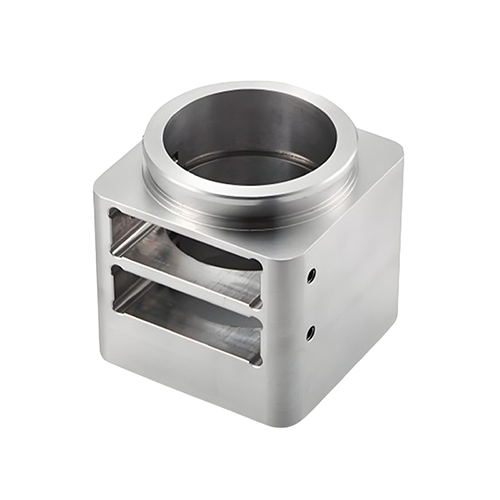

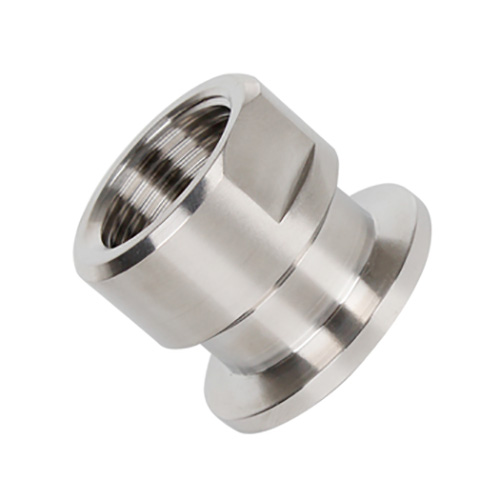

Case Showcase
HANDEMO
Application Areas
Aerospace
Automotive
Mold and Die Manufacturing
- 24/7 online reception service
- On-site installation
- 5-year warranty
