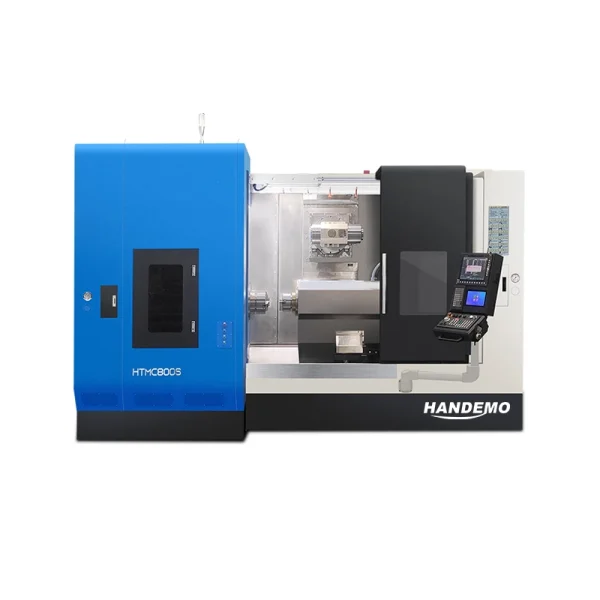

HTMC800S
HTMC800S CNC machine tool can process shaft and disc parts, as well as complete flat milling, drilling, tapping, straight groove, spiral groove, and milling teeth. It has composite functions such as turning, milling, and boring, and can achieve the machining concept of one-time clamping and complete completion. It can efficiently, massively, and accurately process rotating body parts.
WhatsApp: +86 15163265202
E-mail: sales@cnchandemo.com
Product Parameters
| Maximum rotation diameter of lathe(mm) | 600 |
| Maximum cutting length(mm) | 1000 |
| Maximum cutting diameter(mm) | 580 |
| Spindleendform | A2-8(6) |
| Spindle hole diameter(mm) | 87/67 |
| Spindle speed (rpm) | 3000(4000) |
| X-axis travel (mm) | 720 |
| Y-axis travel(mm) | ±125 |
| Z-axis travel (mm) | 1550 |
| Spindlemotor power(KW) | 37（30） |
| X/Y/Z rapid shift speed(m/min) | 2012/12/12 |
| Tool holder form | 12-station |
| Machine weight (Kg) | 17000 |
Can realize 10-axis 5-link
- Dual electric spindle -dynamic docking accuracy of 0.003mm
- 40 tool libraries, HSK tool holder structure
- X-axis travel 700mm, Z-axis travel 1550mm
- Can process 600mm diameter, W-axis hard rail
- Swinging head linkage ±110°
Miling spindle
It uses a high-power, high-speed electric spindle with a maximum speed of 6000 rpm, a rated torque of 100 N.m, and a HSK-T63 high-precision toolholder structure to meet most milling requirements.
B-axis structure
Permanent magnet synchronous motor is used for precise indexing.
Maximum torque:1320Nm, ensuring rigidity during turning.Not only horizontal front processing, but also angle pro-cessing.
