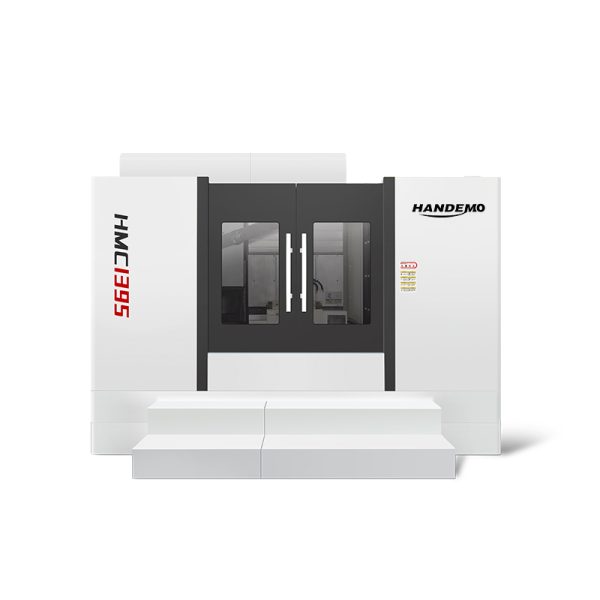

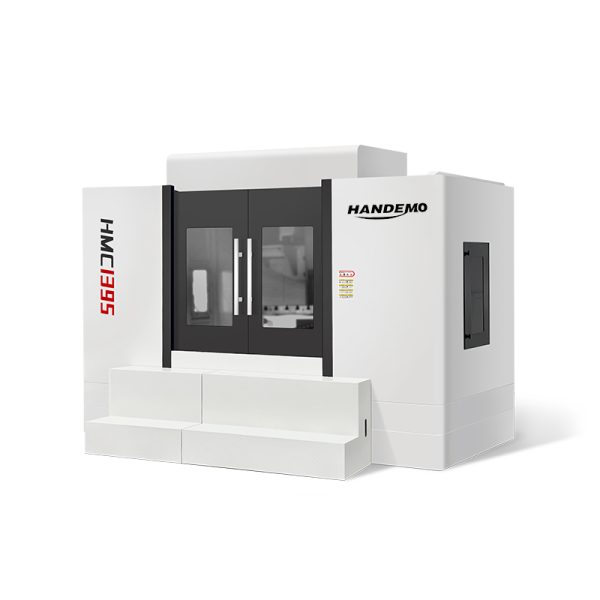

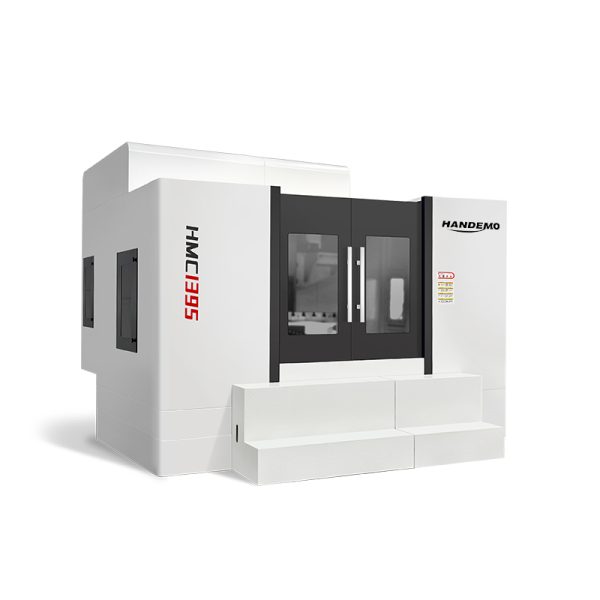

HMC1395
HMC1395 is a high-performance horizontal machining center designed for efficient precision machining of large and complex parts. This model adopts a high-rigidity integral casting bed and precision roller guides, is equipped with a high-torque electric spindle, supports five-axis linkage machining, and is suitable for machining complex structural parts in the fields of aerospace, energy equipment, heavy machinery, etc.
HANDEMO
Parameters
| Product model | HMC1395 | Control system | KND、fanuc、siemen、or others |
|---|---|---|---|
| Workbench size(mm) | 1400*700 | T-slot | 5-18-130 |
| Maximum load (KG) | 1500 | Spindle taper hole | BT50-190 |
| X-axis travel (mm) | 1300 | Spindle speed (rpm) | 6000 |
| Y-axis travel (mm) | 800 | X//Z rapid shift speed (m/min) | 15/12/15 |
| Z-axis travel (mm) | 750 | Machine weight (KG) | 10000 |
HANDEMO
Features

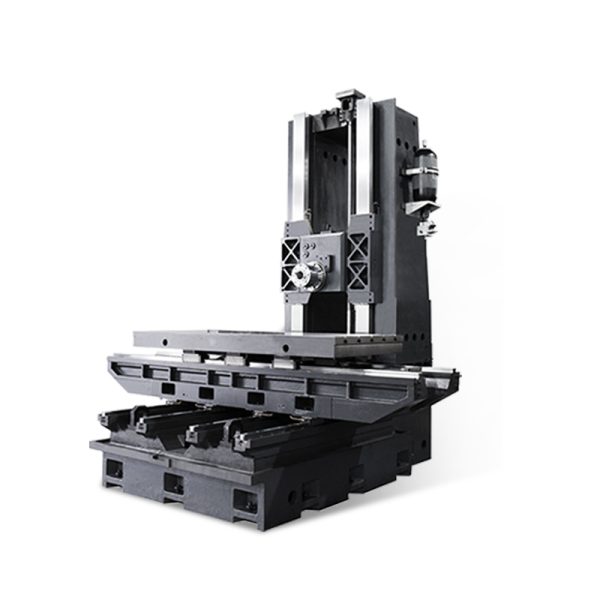

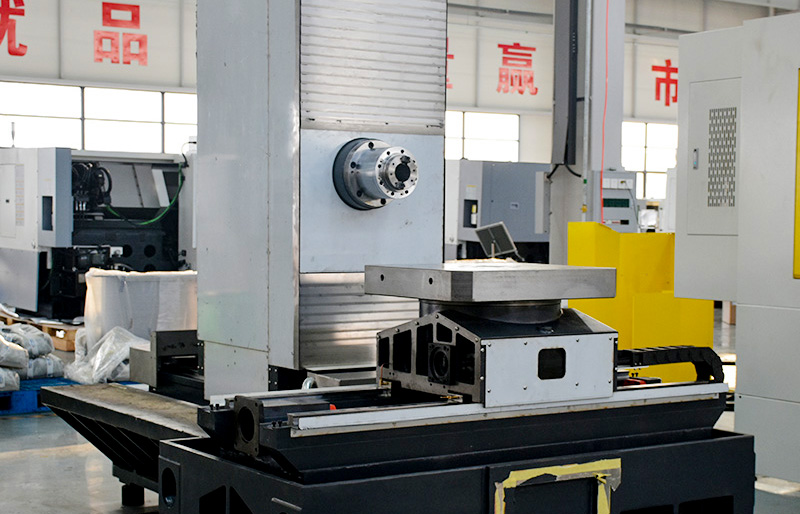

Boring and milling machine structure
The overall two-line and one hard structure, the column is equipped with hard rails, and the overall rigidity is good.
Efficient automated production

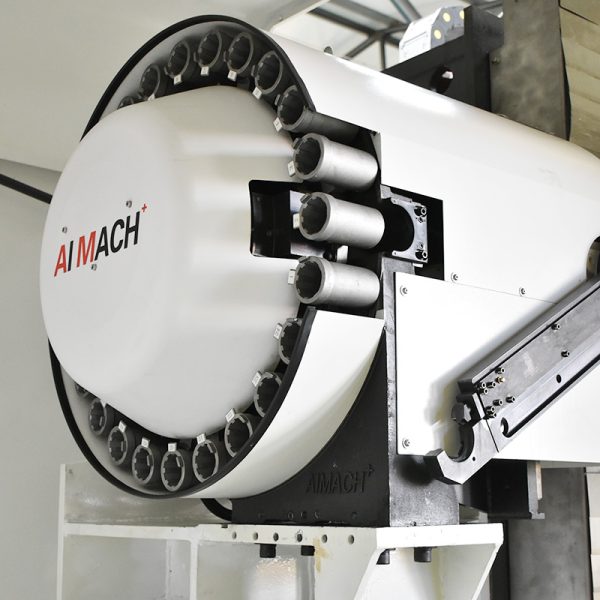

Equipped with high-speed chain tool magazine (24 tool positions), tool change time ≤ 2.5 seconds; optional double exchange worktable to achieve automatic loading and unloading of workpieces and reduce downtime.
Intelligent CNC system
It supports a variety of domestic and foreign CNC systems, supports five-axis linkage, dynamic compensation and adaptive cutting functions, and improves the efficiency of complex surface processing.
Large processing space and carrying capacity
Equipped with a 1400×700mm large-size workbench with a maximum load-bearing capacity of 1500kg, it can meet the processing needs of large workpieces such as aerospace, energy equipment, etc.
HANDEMO
Different structures
The spiral chip extractor is easier to clean.
The telescopic spindle structure is more suitable for deep hole machining.
Oil-water separation design technology.
HANDEMO
Application Areas
Aerospace
Automotive
Mold and Die Manufacturing
